Franklin FPS Series V

The standard FPS Series V submersible well pump features unique hydraulics that improve efficiency and minimize wear even when pumping abrasives. Discharge and motor brackets are available in thermoplastic or stainless steel with a removable check valve system. This submersible well pump series is available in 10, 15, 20, and 25 gpm, 1/2 – 5 horsepower.

Features & Benefits

• 4 performance ranges: 10, 15, 20, and 25 gpm.
• Horsepower ranges: 1/2 – 5.
• Discharge head and motor bracket produced with industry proven, engineered materials.
• Available in 300 series stainless steel or high quality thermoplastic resins.
• Large wrench flat area on the discharge head for ease of installation.
• Dry run designed top bearing positively supports the 300 series stainless steel 7/16-inch hex shaft.
• Removable internal check valve.
• Powered by Franklin Electric corrosion-resistant super stainless 4-inch submersible motors with lightning protection.
• Maximum water temperature with proper flow is 120 °F/49 °C. Consult factory for details.

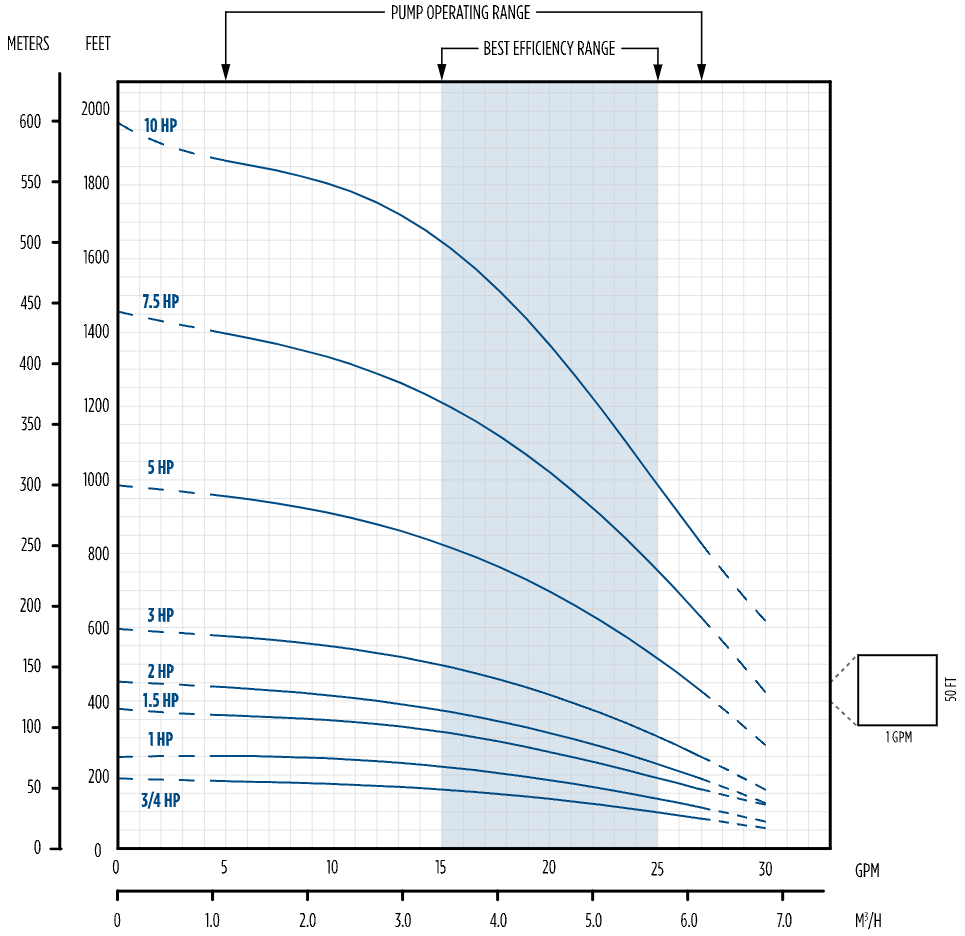

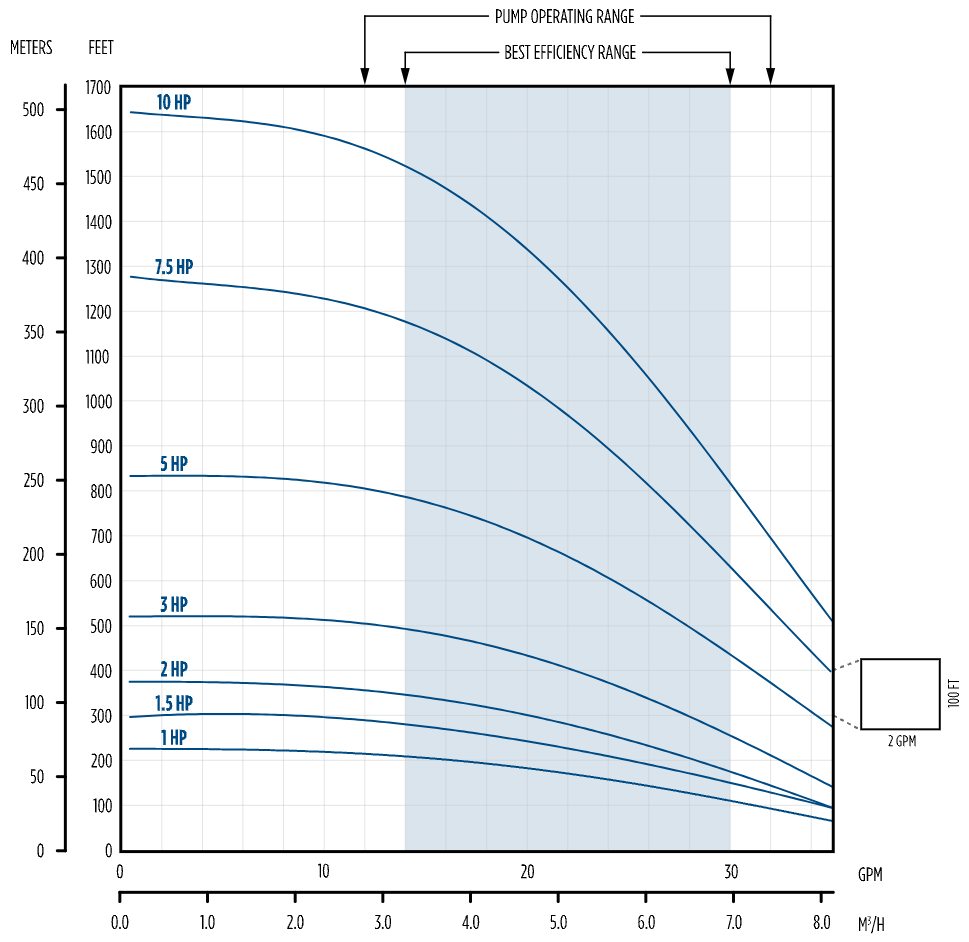

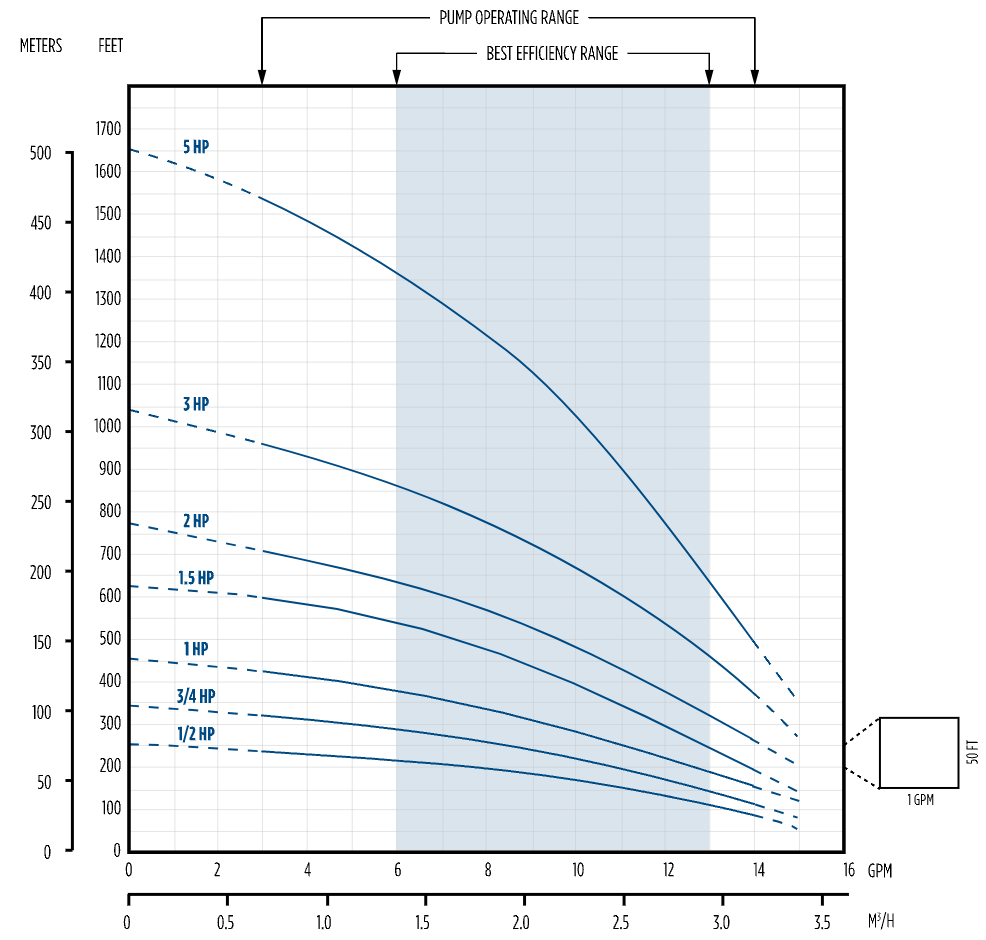

10GPM                         15GPM                         20GPM                        25GPM
