Franklin FPS Tri-Seal

• 300 series stainless steel hub floats with the impeller maintaining a positive seal.
• Phenolic washer provides down-thrust protection.
• Acetal impeller provides high efficiency performance and abrasion resistance.
• Modified PPO diffuser and disc – proven abrasion resistant material.
• Floating stage design allows impeller to float independently.
  Removable, spring-loaded check valve.
• Maximum water temperature: 120 °F/ 49 °C.
• Ceramic shaft sleeve and rubber discharge bearing protect shaft and eliminate sand wear.
• Powered by Franklin Electric corrosion resistant 4-inch submersible motor
• Patented impeller hub seal system seals radially and axially to prevent fluid recirculation, providing high performance in the harshest conditions.

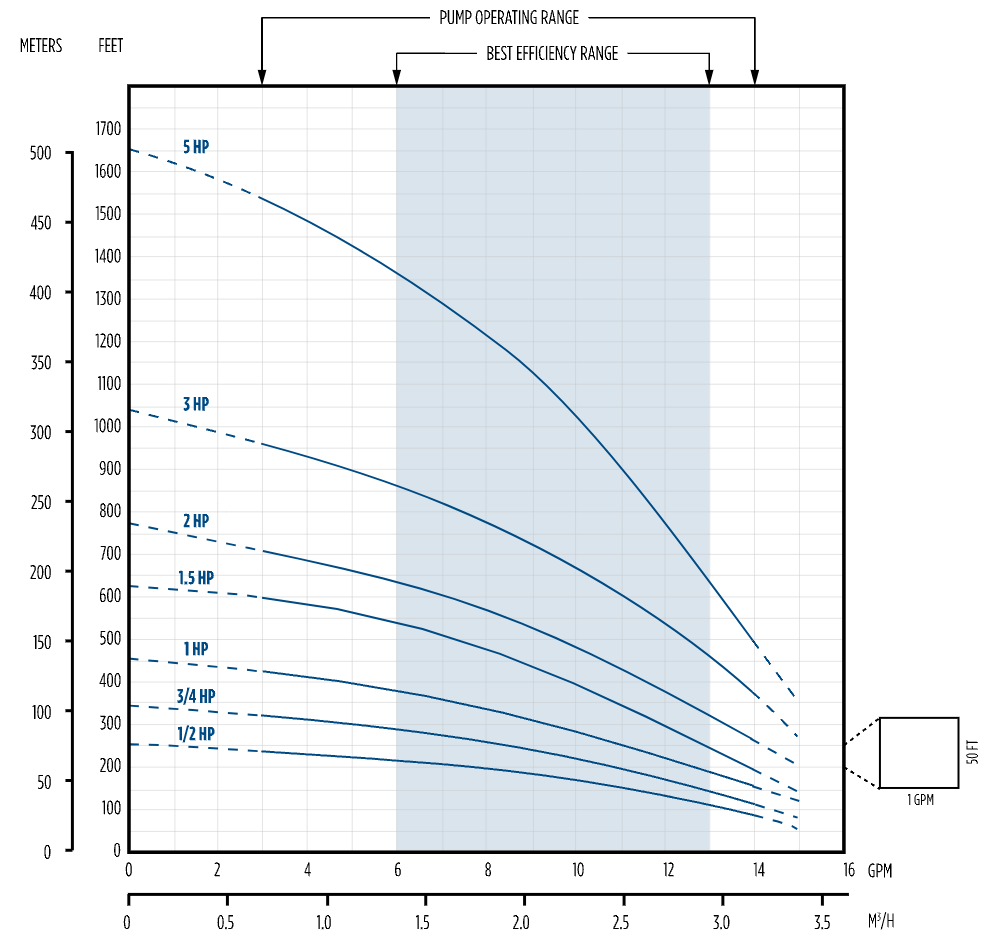

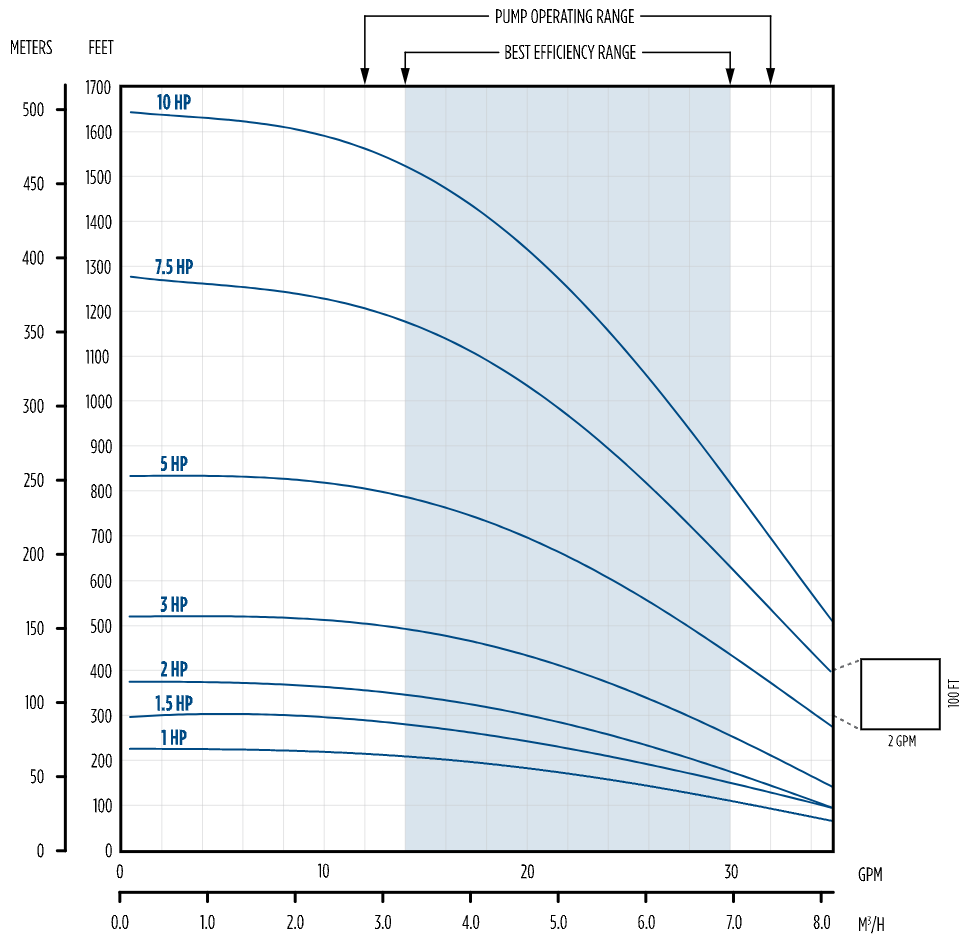

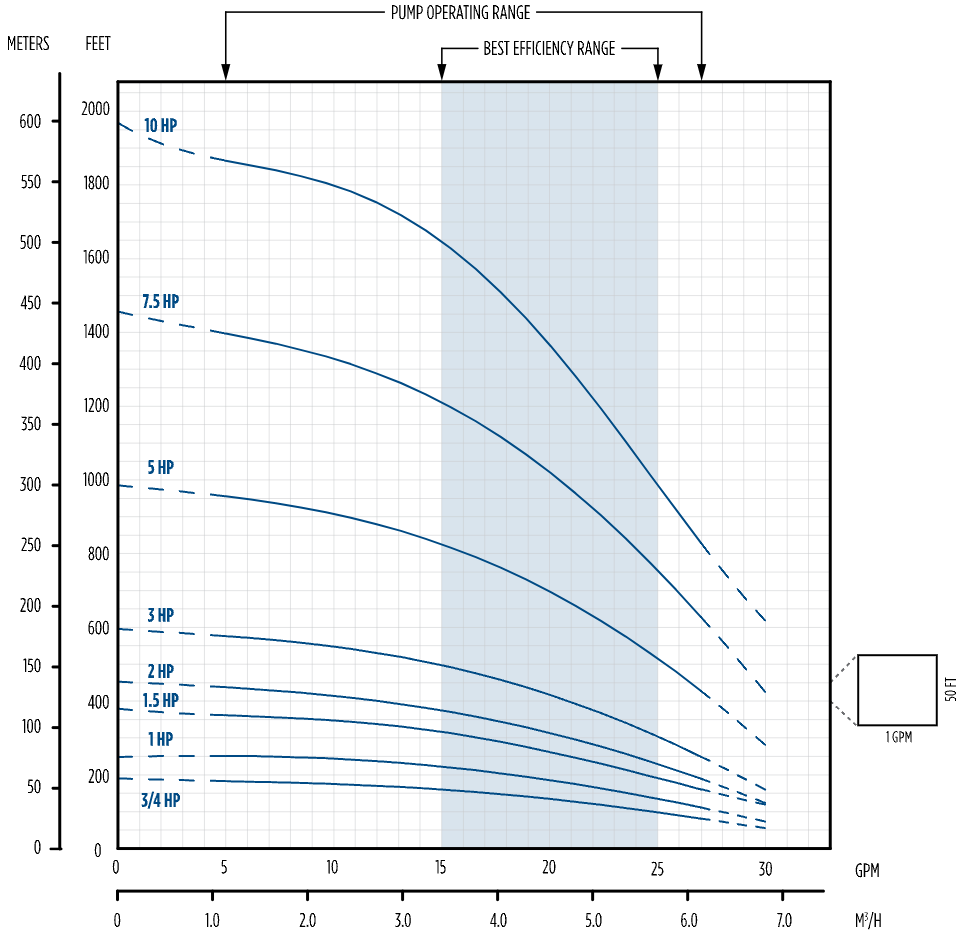

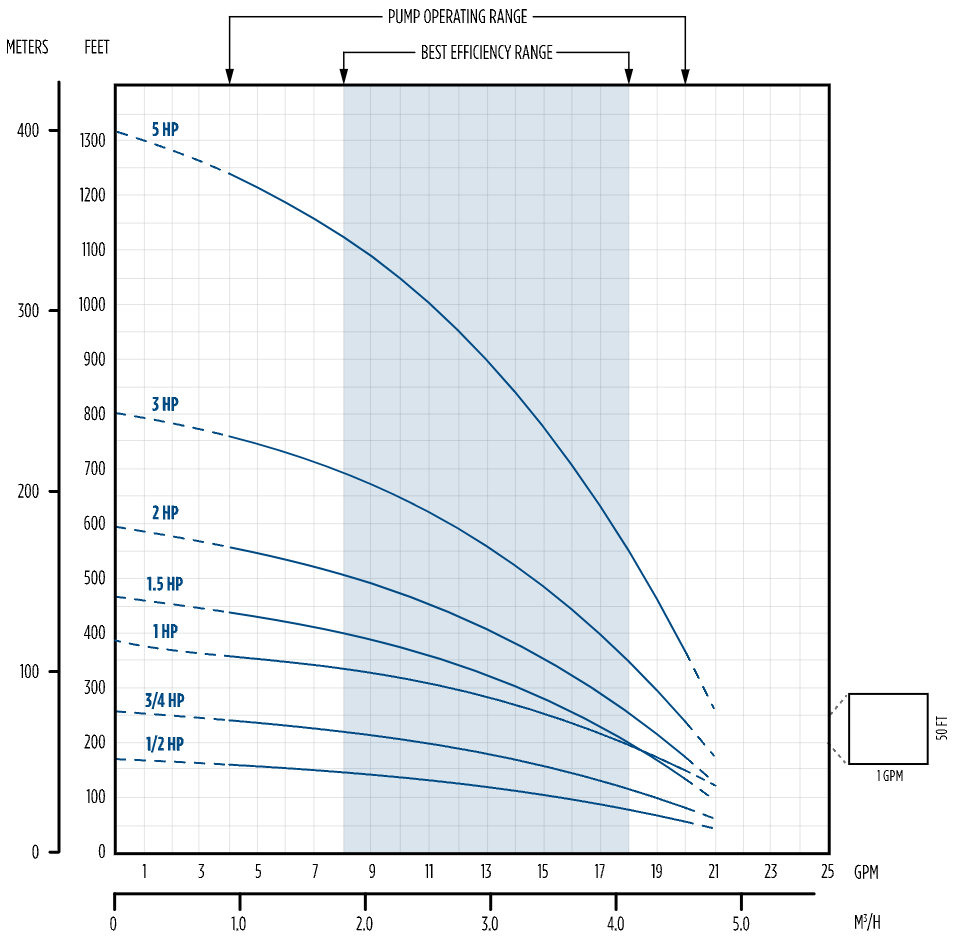

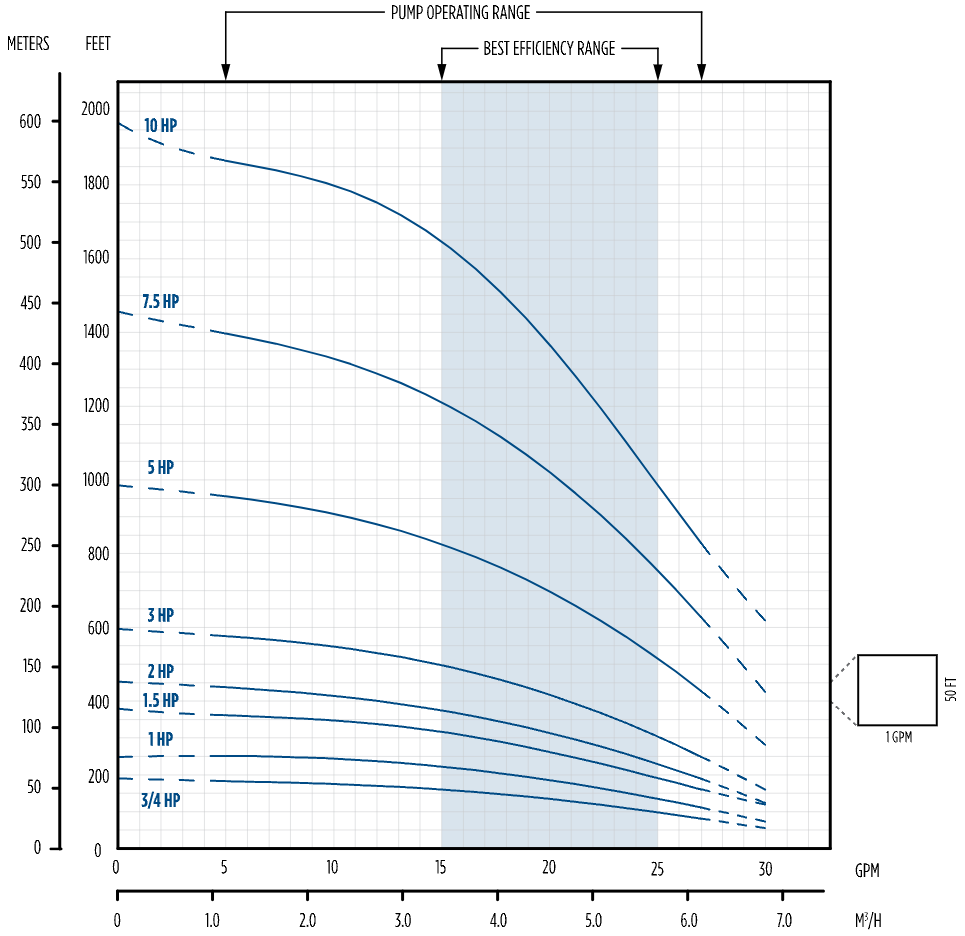

Performance Curves

10GPM                         15GPM                         20GPM                         25GPM
