Franklin Tri-Seal High Capacity

Our 4-inch TRI-SEAL High Capacity submersible well pump is ideal for farm, home, irrigation, industry, municipal, and commercial applications, equipped with the power, performance, and reliability you expect from Franklin Electric. Flow ratings of this high capacity submersible well pump are available in 35, 45, 60, and 90 gpm. Available from 1-1/2 to 10 hp.

Features & Benefits

• Four performance ranges: 35, 45, 60, and 90 gpm
• 2″ NPT discharge, with and without an internal stainless steel wafer-style check valve
• Stainless steel discharge head and motor bracket
• High flow hydraulic staging allows for maximum pump output, exceeds all energy efficiency standards, and provides increased product longevity
• Ceramic shaft sleeve and rubber discharge bearing eliminates sand wear
• Intermediate bearing for increased shaft stability when pump lengths dictate on high horse, high performance constructions
• Impeller eye and hub seals for improved performance and efficiency
• Stainless steel hex pump shaft, shell, and shaft coupling
• High capacity upthrust assembly for protection during start-up and operation (35, 45, 60, and 90 gpm models)
• Designed for optimal performance when powered by Franklin’s corrosion-resistant 4″ submersible motors

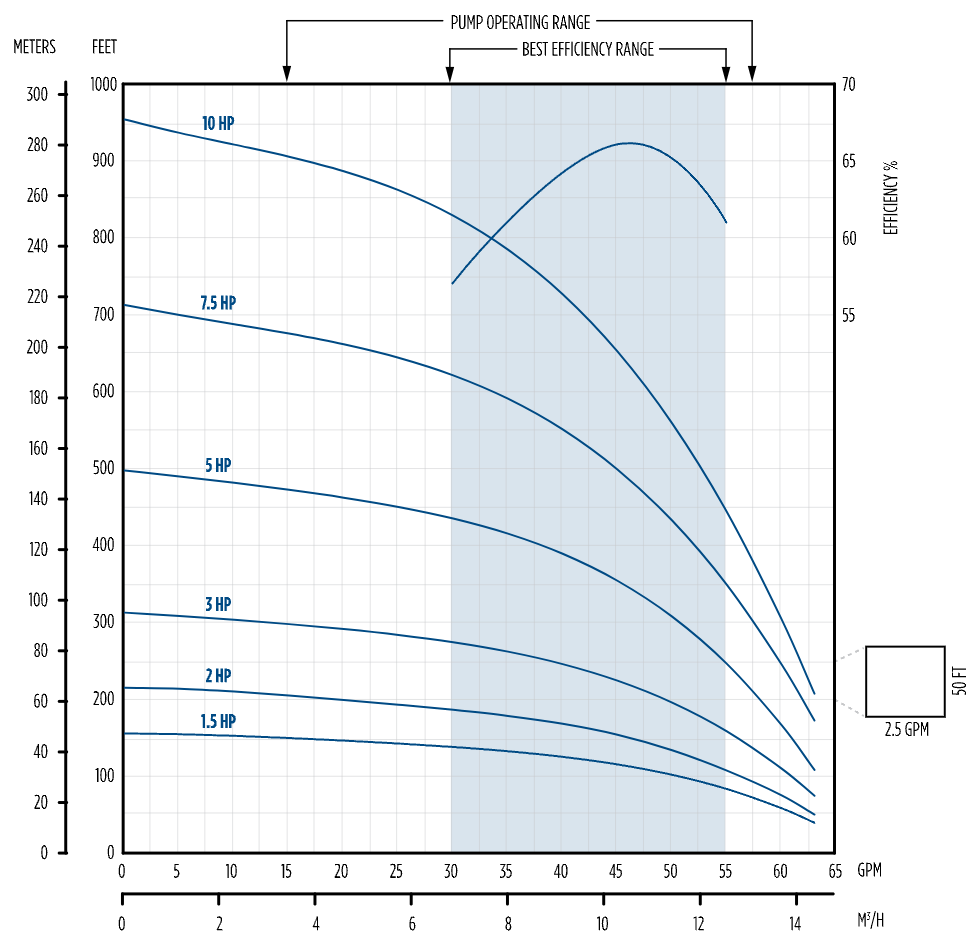

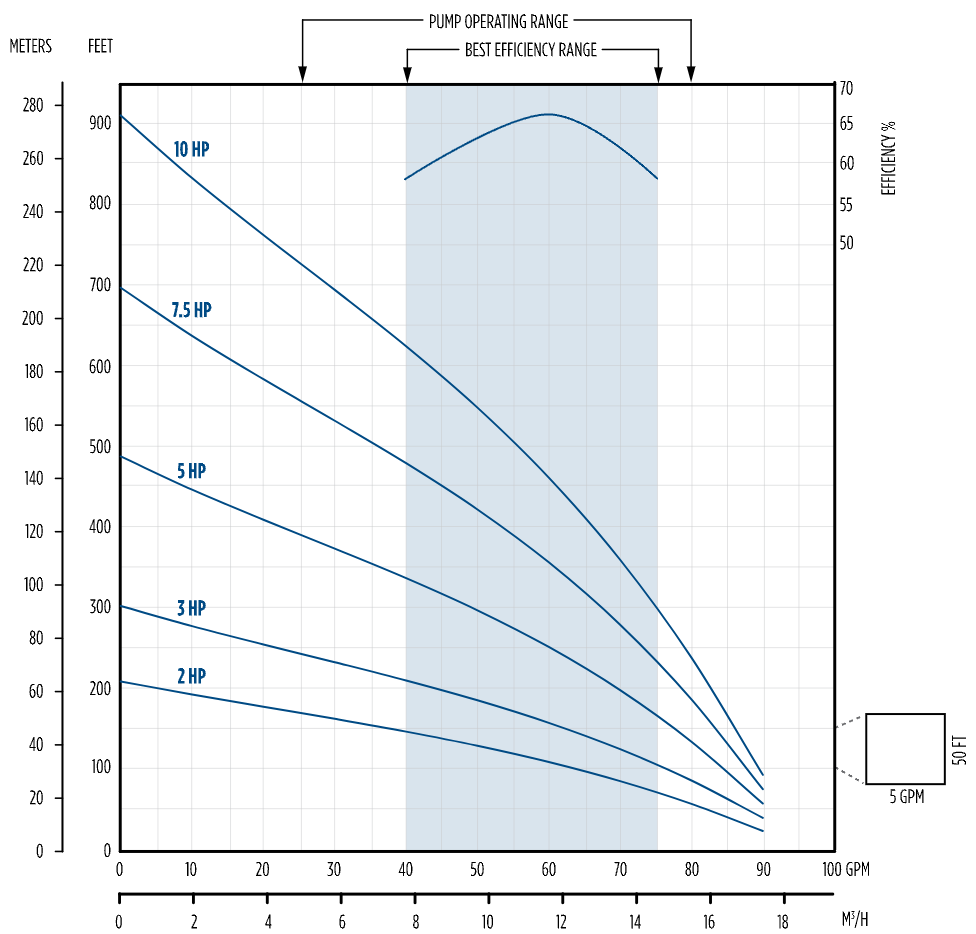

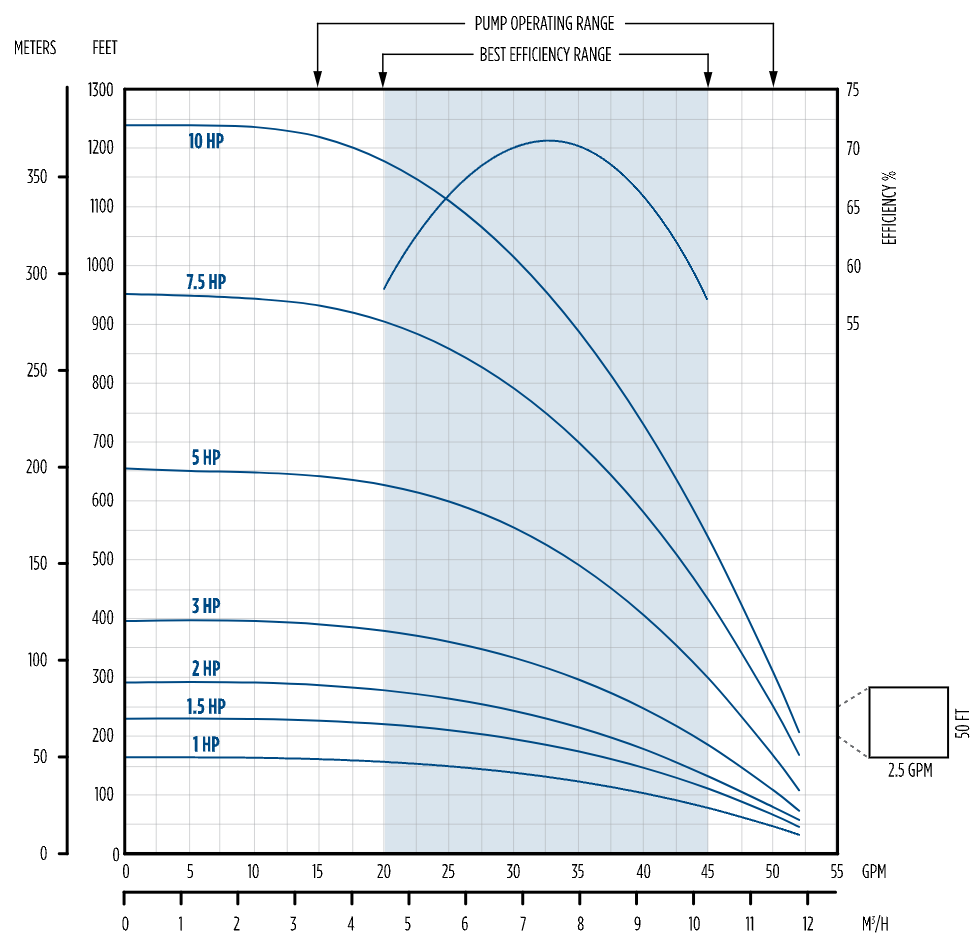

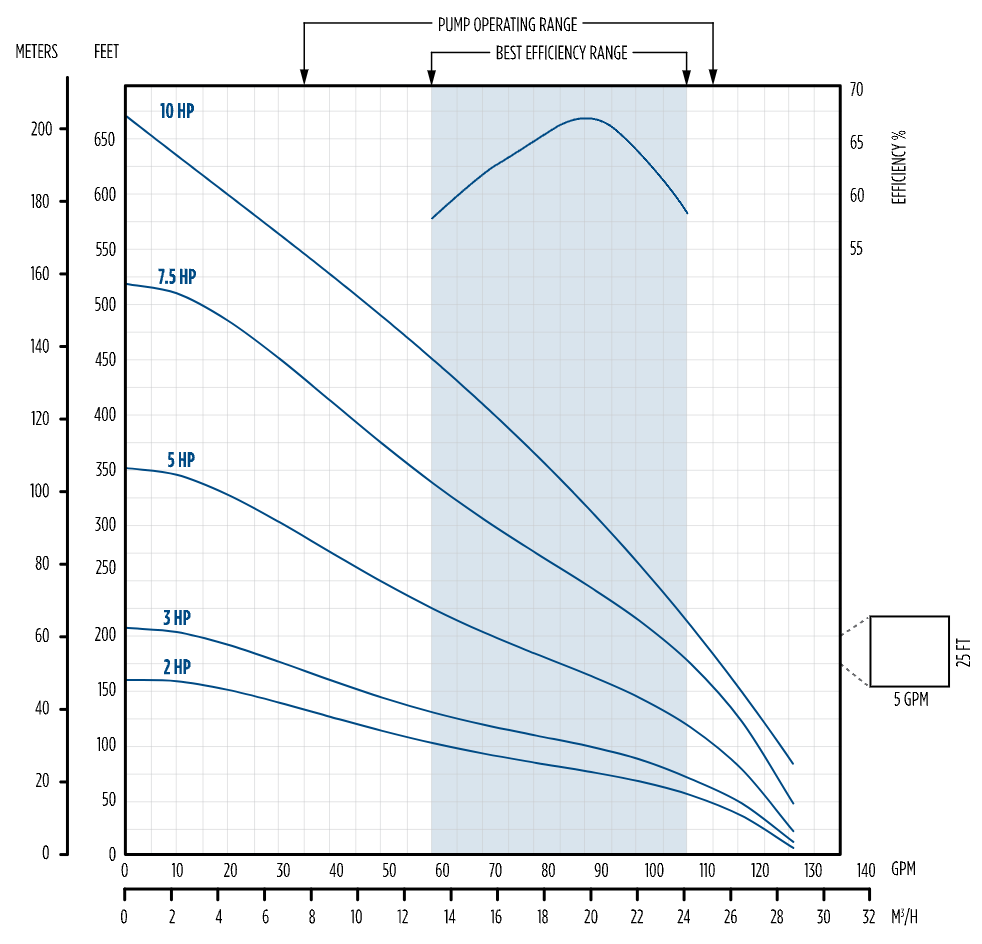

Performance Curves

35GPM                         45GPM                         60GPM                        90GPM
