Franklin 3200 Series

​The FPS 3200 Series is a submersible well pump and is designed so that all parts of the pump end, including the cable guard, fall within the diameter of Franklin Electric’s industry leading submersible 4-inch motor. This reduced diameter pump end makes it ideal for installations where the well is considered encrusted or tight in comparison to a standard 4-inch well. The FPS 3200 Series submersible well pump also offers a hydraulic stage design optimized for greater water and pressure output when installed at deeper well depths.

Features & Benefits

  • Pump diameter is smaller than a standard 4-inch submersible for easier installation in reduced diameter 4-inch wells.
  • Hex rubber bearing and ceramic shaft sleeve allows sand and abrasives to pass through, virtually eliminating shaft wear and upper bearing failures.
  • Improved hydraulic performance for deeper set depths at all horsepower and flow ratings.
  • Floating stage design allows for maximum efficiency while minimizing the downthrust load that is transferred to the motor.
  • Modified PPO diffuser and disc with 300 Series stainless steel thrust and eye seal protection for durability and abrasion resistance.
  • Acetal impeller provides high performance to increase pressure output while reducing system losses from friction.
  • Removable spring-loaded check valve.
  • Stainless steel pump intake screen and stainless steel cable guard.
  • Maximum water temperature: 120 °F / 49 °C.
  • Powered by corrosion-resistant Franklin Electric submersible 4-inch motor with lightning protection.

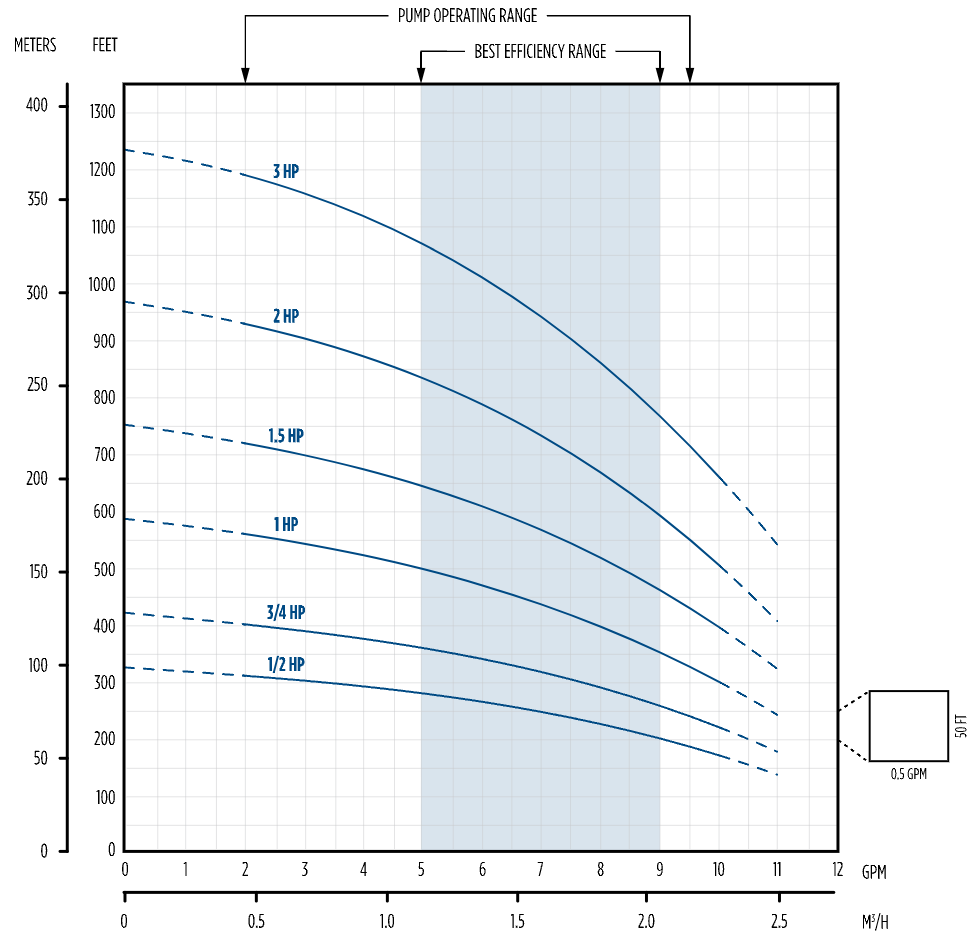

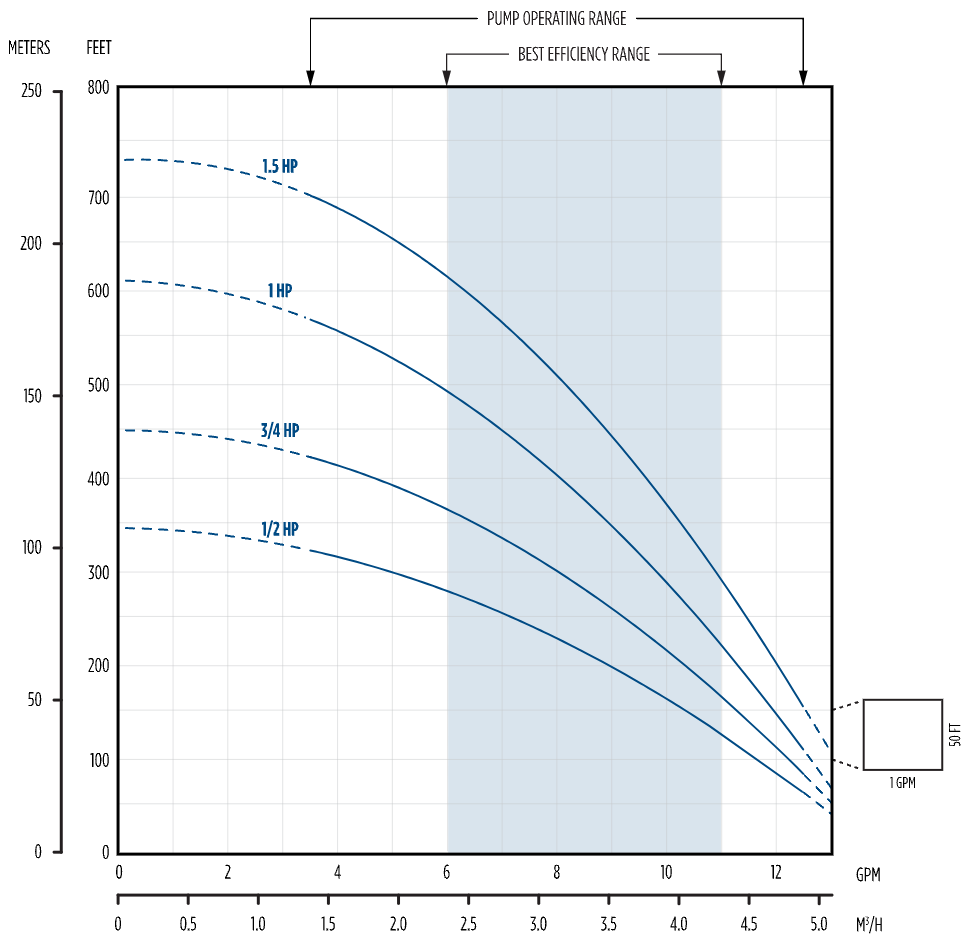

Performance Curves

5GPM                           7GPM                           10GPM
